Supports contact, contactless, dual-interface, SWP and other interfaces; compliant with GlobalPlatform specifications and supports the Java platform; certified to EAL4+ and other standards.
Main Technical Specifications

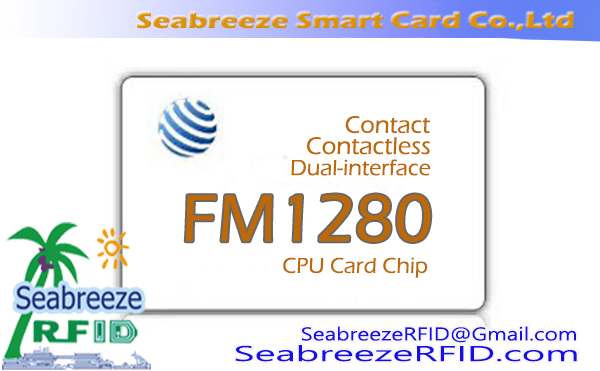

Chip Type: FM1280 Dual Interface (same series as FM1204/FM1208/FM1232/FM1280)
Storage Capacity: 80Kbit
Operating Frequency: 13.56MHz
Compliance Standards: ISO14443, ISO7816
Communication Rate: 106K
Read/Write Range: 2.5–10cm
Read/Write Time: 1–2 ms
Operating Temperature: -20°C to +55°C
Erase/Write Lifespan: >100,000 cycles
Data Retention: >10 years
Dimensions: ISO Standard Card 85.5×54×0.84mm
Encapsulation Materials: Polycarbonate, PVC, PET, PETG, ABS
Encapsulation Process: Ultrasonic automatic wire insertion / Automatic spot welding
The FM1280 contact and dual interface CPU card is a high-security, high-capacity CPU card chip. It can support flexible and versatile Java applications or specialised native COS applications for sectors including devices, finance, healthcare, public transport, and campuses. It supports multiple encryption algorithms including DES/AES/RSA, SHA1, SSF33, SM1/SM2/SM3/SM4, alongside various security measures, delivering robust resistance to attacks. Multiple communication interfaces are supported: contact (ISO/IEC 7816), contactless (ISO/IEC 14443A), or dual-interface (select one).
The FM1280 finds extensive application in social security cards, health cards, bank cards, citizen cards, public transport cards, motorway toll cards, campus ID cards, and micro-payment systems. It also serves secure applications such as ESAM modules, PSAM cards, high-end ID credentials, and mobile payments. It facilitates simplified implementation of multi-domain integrated solutions.
As a CPU card, the FM1280 is also compatible with the FM11RF08M, FM11RF08SH, FM11RF32M, and FM11RF32SH series of contactless logic encryption card chips. This provides an enhanced solution for projects upgrading logic encryption cards to more secure CPU cards.
Application Domains
Finance, transportation, telecommunications, education, medical insurance cards, social security cards, identity verification, security systems, access control, campus One-Card Solution, fuel cards, micro-payments, commerce, public utilities, large enterprises, and more.
Printing: Offset Printing, Patone ink Printing, Spot-color printing, Silkscreen Printing, Thermal printing, Ink-jet printing, Digital printing.
Security features: Watermark, Laser ablation, Hologram/OVD, UV ink, Optical Variable ink, Hidden barcode/Barcode mask, Graded Rainbow, Micro-text, Guilloche Pattern, Hot stamping.
Others: IC chip data initialization/Encryption, Variable Data, Personalized magnetic stripe programed, Signature panel, Barcode, Serial number, Embossing, DOD code, NBS convex code, Die-cut.
